The World's Most Compact Pop-Up Pit Perch
A pit perch for race teams that folds down for the trailer, with screen mounts, power, lighting and weather cover built in.
What is a pit perch?
A pit perch is the team's station on the pit wall, where engineers and strategists run live timing, data, radio and pit boards during a session. You may also hear it called a prat perch, pit wall stand or timing stand.
Traditional versions are built from bars, beams and panels. They give a solid working position, and they also take several people to handle and fill valuable trailer space.

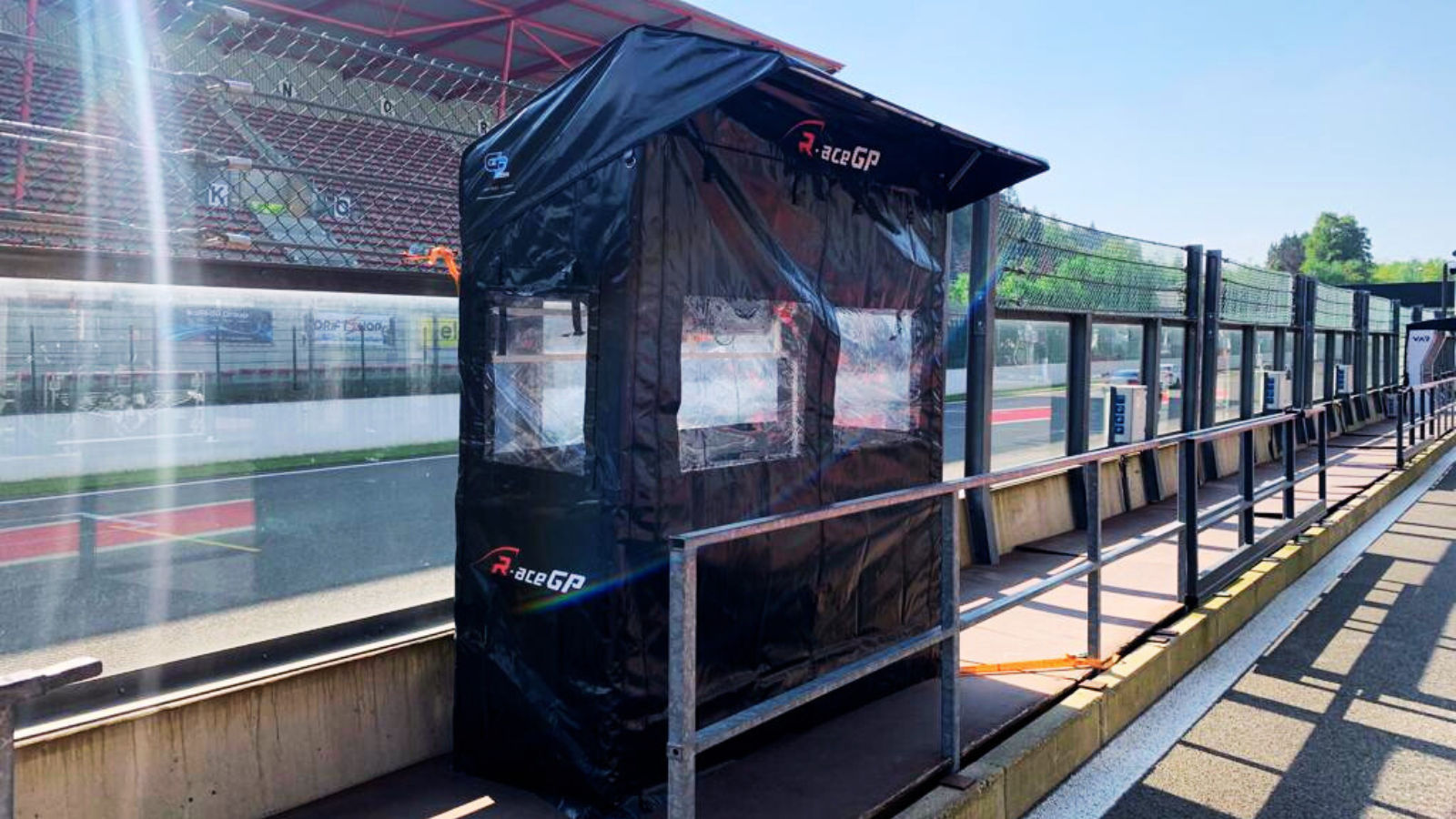

The Pit Perch, developed by Gala Performance, puts that same working position on a folding aluminium frame. See how it compares with traditional pit wall systems.

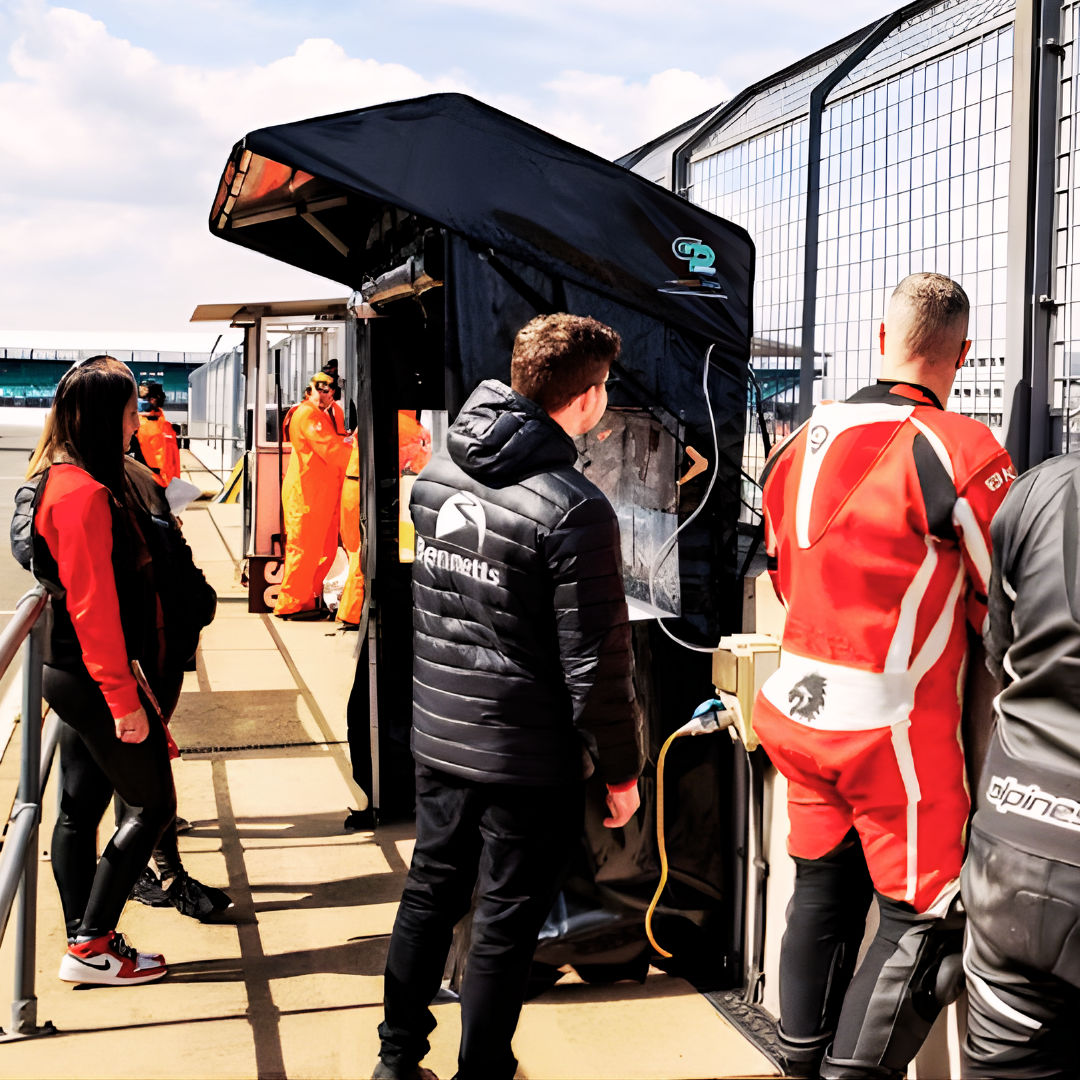

It is used by endurance, GT, touring car, motorcycle and karting teams, as well as trackday support crews and driver coaches.

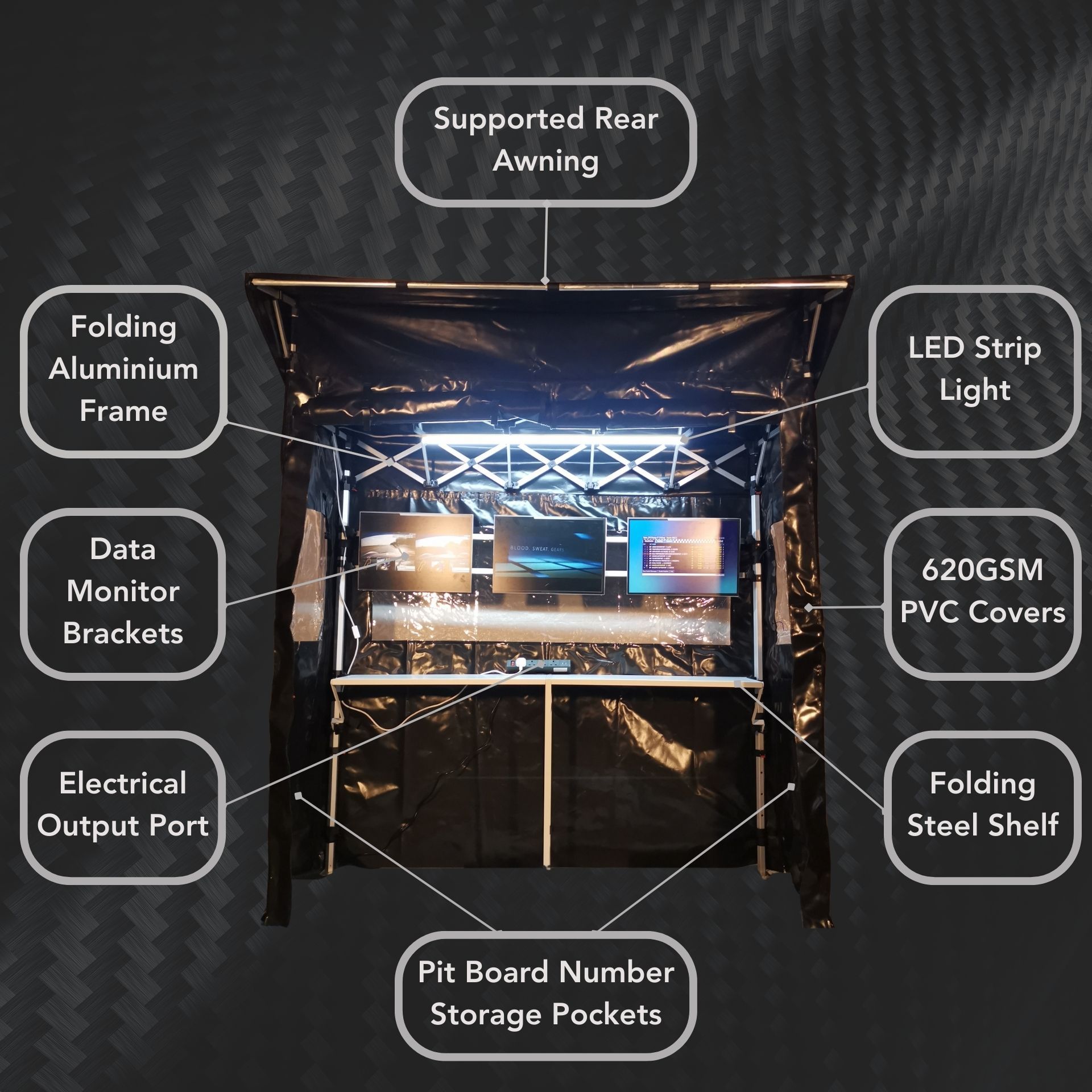

Pit Perch features
Folding aluminium frame
Opens quickly and locks into a rigid, stable structure.
Supported rear awning
Overhead weather protection that keeps the pit lane footprint the same.
Data monitor brackets
Hold up to three timing, telemetry and strategy screens at working height.
LED strip light
Even light for low-light sessions and overnight running.
620gsm PVC covers
Heavy-duty protection for people and equipment across a full race weekend.
Folding steel work shelf
A solid surface for laptops, radios and control hardware.
Electrical output ports
Power at the pit wall, with fewer trailing leads.
Pit board pockets
Numbers and race-day essentials stored within reach.
Compact pop-up design
Packs down to 1630mm x 650mm x 370mm and rolls away in its wheeled transport bag.
Add team branding to your Pit Perch
Team logos and key information can be printed on the side panels and above the door, so they stay visible to TV cameras, officials and team members throughout the event.
All printing is carried out in-house at our UK HQ. Once artwork is approved, a fully printed Pit Perch can typically be dispatched within 1–3 working days.
Pit Perch specification
| Packed size | 1630mm x 650mm x 370mm |
|---|---|
| Total weight | Approx. 62kg |
| Erected footprint | 800mm wide x 2070mm long |
| Height | 2100mm to eave, 2280mm to peak, 2410mm to apex |
| Valance height | Approx. 350mm |
| Main door | 900mm to 1800mm wide x 2000mm high |
| Left and right doors | 640mm wide x 1630mm high |
| Front window | 1770mm x 565mm, 1075mm from ground to bottom of window |
| Left and right windows | 475mm x 570mm, 1065mm from ground to bottom of window |
| Frame | Folding aluminium |
| Covers | 620gsm heavy-duty PVC, black as standard |
| Work table | White powder-coated steel, 1856mm long x 340mm deep, 930mm high |
| LED light | 1160mm long |
| Screens | Brackets for up to three monitors |
| Power | Integrated electrical output ports |
| Storage | Internal pockets, including pit board numbers |
| Transport | Wheeled transport bag |
| Printing | Side panels and above the door, at additional cost |
Getting ready for the 2027 race season
A pre-season pit wall checklist, and the case for a pop-up pit perch before round one.
Pit perch FAQs
What is a pit perch?
Is a prat perch the same as a pit perch?
How many monitors does the Pit Perch hold?
Can the Pit Perch be fully enclosed?
How big is the Pit Perch?
How quickly can the Pit Perch be set up?
How is the Pit Perch transported?
Can I add team branding?
Do you ship outside the UK?
